10X GM60 UART Stainless Steel Controlled Ring Indicator Light 1D/QR/2D Bar Code Scanner QR Code Barcode Scanner Module

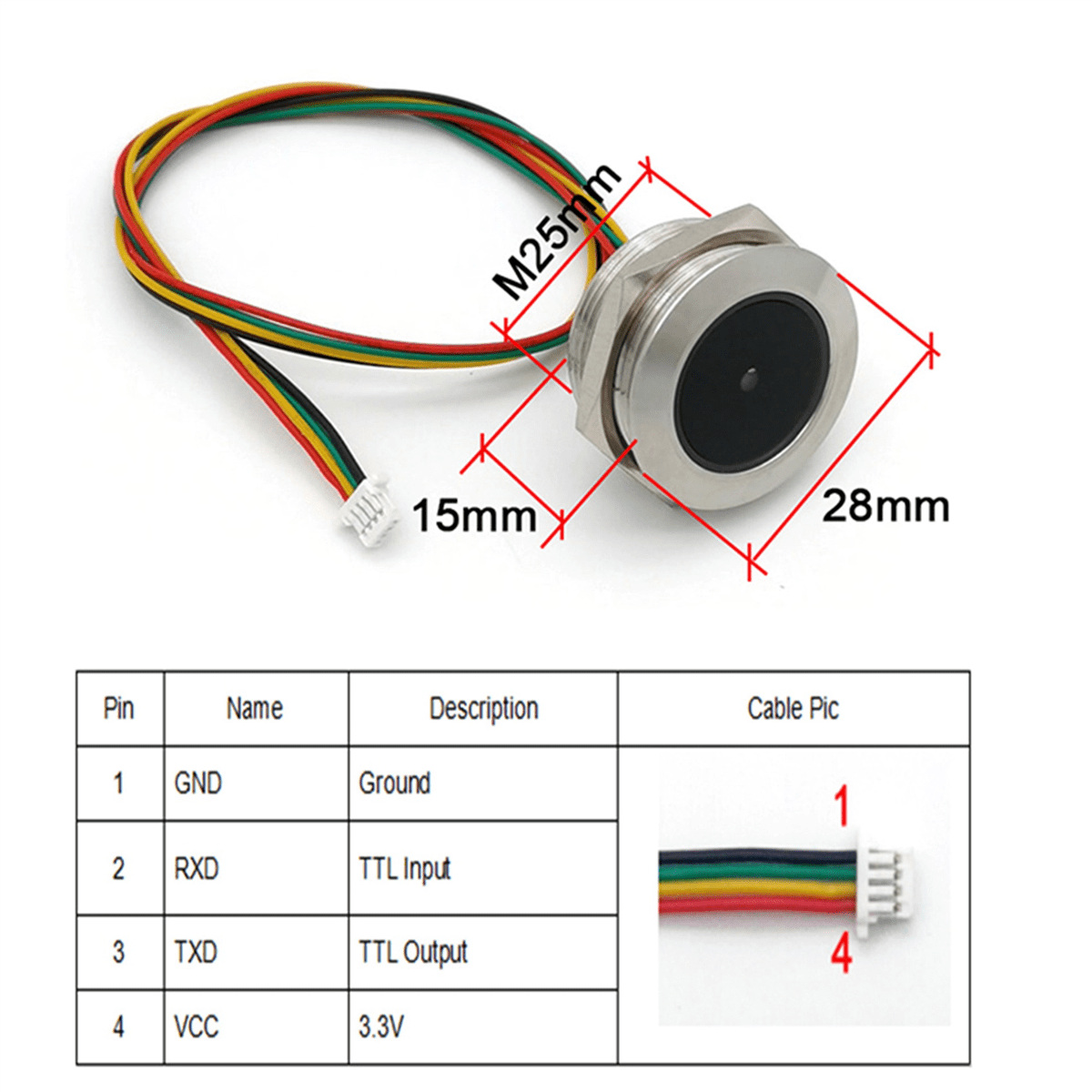

GM60 is a QR code scanner with high integration and excellent performance;<br>It is small in size;<br>The barcode and QR code formats that can be recognized include QR Code, Data , PDF417, EAN13, UPC, Code 39, Code 93, Code 128, UCC/ 128 et al.<br>Stainless steel threaded housing simplifies installation troubles. Neon color effects can be set freely.<br><br>Color: silver<br>Material: stainless steel + plastic<br>SPECIFICATION<br>Model: GM60<br>Type: Barcode Scanner<br>Decoding Ability: QR Code, Data , PDF417,EAN13,UPC,Code 39,Code 93,Code 128,UCC/ 128<br>Scan Mode: 640 x 480<br>Interface: UART<br>Resolution: 5mil<br>Serial Baud Rate(UART): 57600<br>Operating Voltage: 3.3V<br>Operating Current: 70mA<br>Contrast: ≥25%<br>Weight: 25g/pcs<br>Size: External Diameter 28mm Internal Diameter 25mm<br>Height 15mm Thread M25<br>Scan Angle: Roll 360°, Pitch 55°, Yaw 55°<br>Viewing Angle: 69°(Inclination), 56°(Elevation)<br>Light: Colorful indicator/green light flashing prompt reading success<br>Operating Temperature: -30 degrees to 70 degrees<br>Storage Temperature: -30 degrees to 85 degrees<br>Temperature Humidity: 5% to 95% Relative humidity, Non-condensing<br>You can dowload GM60 user manual from the following website:<br>https://.dropbox.com//buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0<br><br>Package Contents:<br>10 x Barcode Scanner Module<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

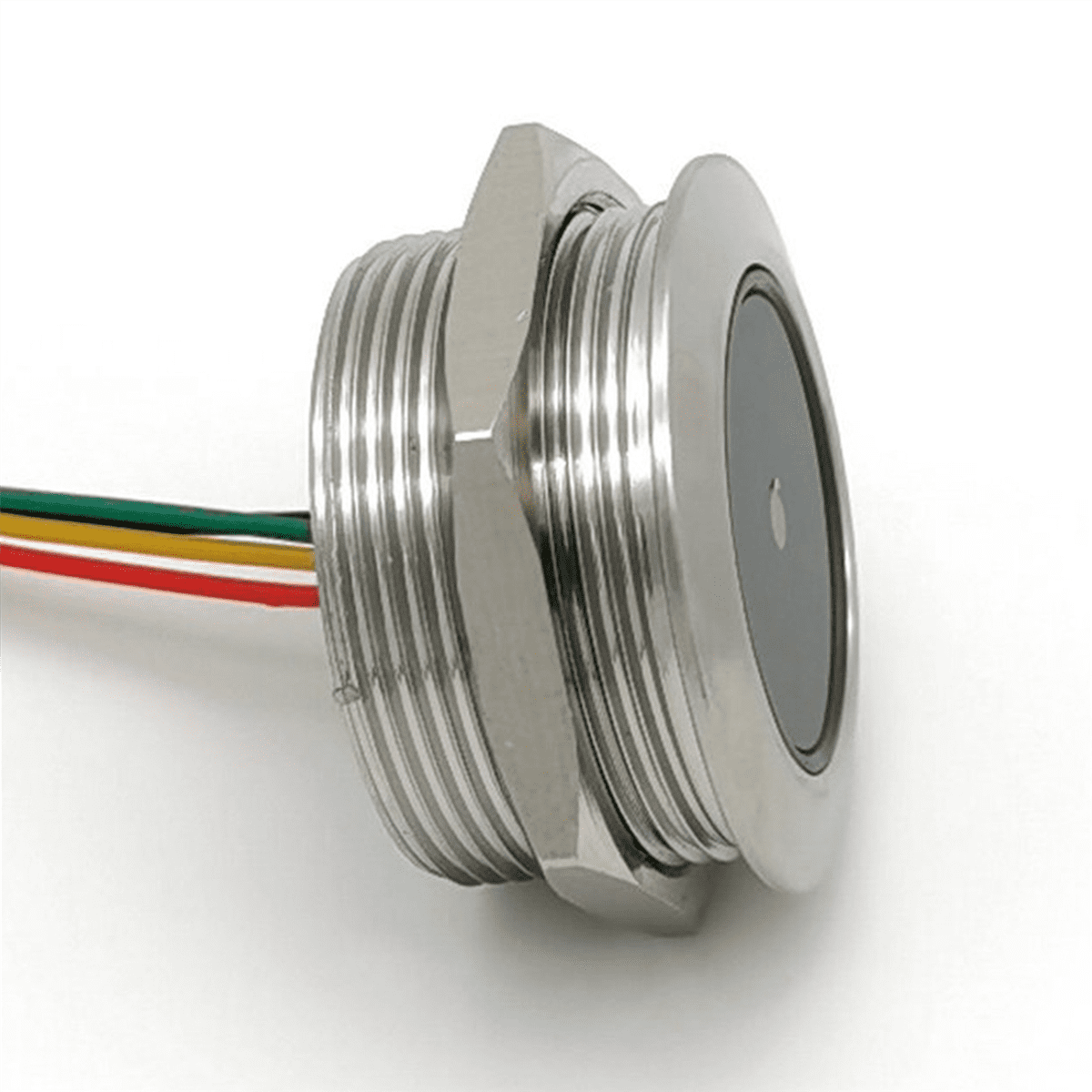

• Stainless steel threaded housing simplifies installation troubles. Neon color effects can be set freely.
• GM60 is a QR code scanner with high integration and excellent performance;
• The barcode and QR code formats that can be recognized include QR Code, Data Matrix, PDF417, EAN13, UPC, Code 39, Code 93, Code 128, UCC/ 128 et al.
• It is small in size;
